MUTE+® cover - Ceiling Absorber

The Striking One with Concealed Frame

  • Building Material Class

    Glass material: A1 - DIN EN 13501

    Polyester fabric: B1 - DIN 4102

    Wool fabric: B2 - DIN 4102

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to Oeko-Tex® Standard 100

  • Quality

    With concealed aluminum frame

    Dimensionally stable, with 90° corners

    Length: 300 to 3,500 mm

    Width: 300 to 1,250 mm

    Thickness: 45 / 60 mm

  • Acoustics

    Absorption class: A

    αw: 0.90 to 1.00 sound absorption coefficient according to DIN EN ISO 354
    Evaluation according to ISO 11654/ ASTM C423
1 23
View full details

Material

  • Frame: material: extruded aluminum profile, mitered and invisibly joined
  • Acoustic insert
  • Fabric: polyester/wool - stretched over the outside of the aluminum frame and vacuumable
  • Glass fabric: stretched over the aluminum frame on the outside, can be vacuumed or cleaned with clear glass cleaner

Building Material Class

  • Building material class DIN 4102: B1 (polyester) / B2 (wool)
  • Building material class DIN EN 13501-1: A1 (glass material)

Shape

  • Rectangular with 90° corners
  • S45 - with 45 mm absorber thickness
  • S60 - with 60 mm absorber thickness

Colours

Additional Equipment

  • Using digital printing
  • With cutouts for built-in components

Acoustics

  • Absorption class: A
  • aw: 0.90 to 1.00
  • Sound absorption coefficient according to DIN EN ISO 354; rating according to ISO 11654/ ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable

Health

  • Mineral fiber free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100
  • Low VOC emissions: Indoor Air Comfort GOLD

  • Installation

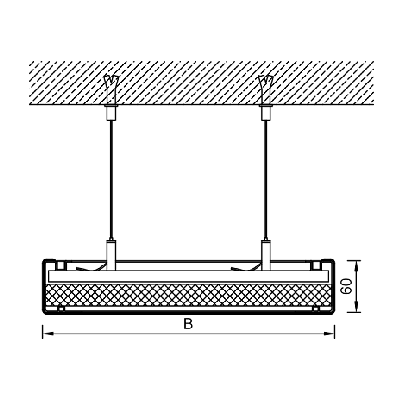

    Time-saving thanks to simple installation with a delicate, continuously adjustable rope suspension.

    CAD-Details

  • Acoustic Calculator

    Room noise is reduced and speech intelligibility is optimised.
    Become a sound artist and experience the data of silence in our acoustic calculator.

    Acoustic Calculator

  • Sound Worlds

    Where creativity meets performance and success stories are written.

    References

Downloads

Notes

  • Visual Appearance

    The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.

    Take the opportunity to order a sample and see for yourself how it meets your expectations.

    Due to different production batches, colour differences in the fabrics may occur.
    The batch discrepancy is not a reason for complaint.

    Any discolouration caused by clothing materials on our fabrics is a defect in the clothing material. Since the polluter pays principle applies here, discolouration of textiles is excluded from any manufacturer's guarantee.
