MUTE+® board S40-B glowline

System Luminaire for MUTE+® board Baffles - Acoustics and Light in Harmony

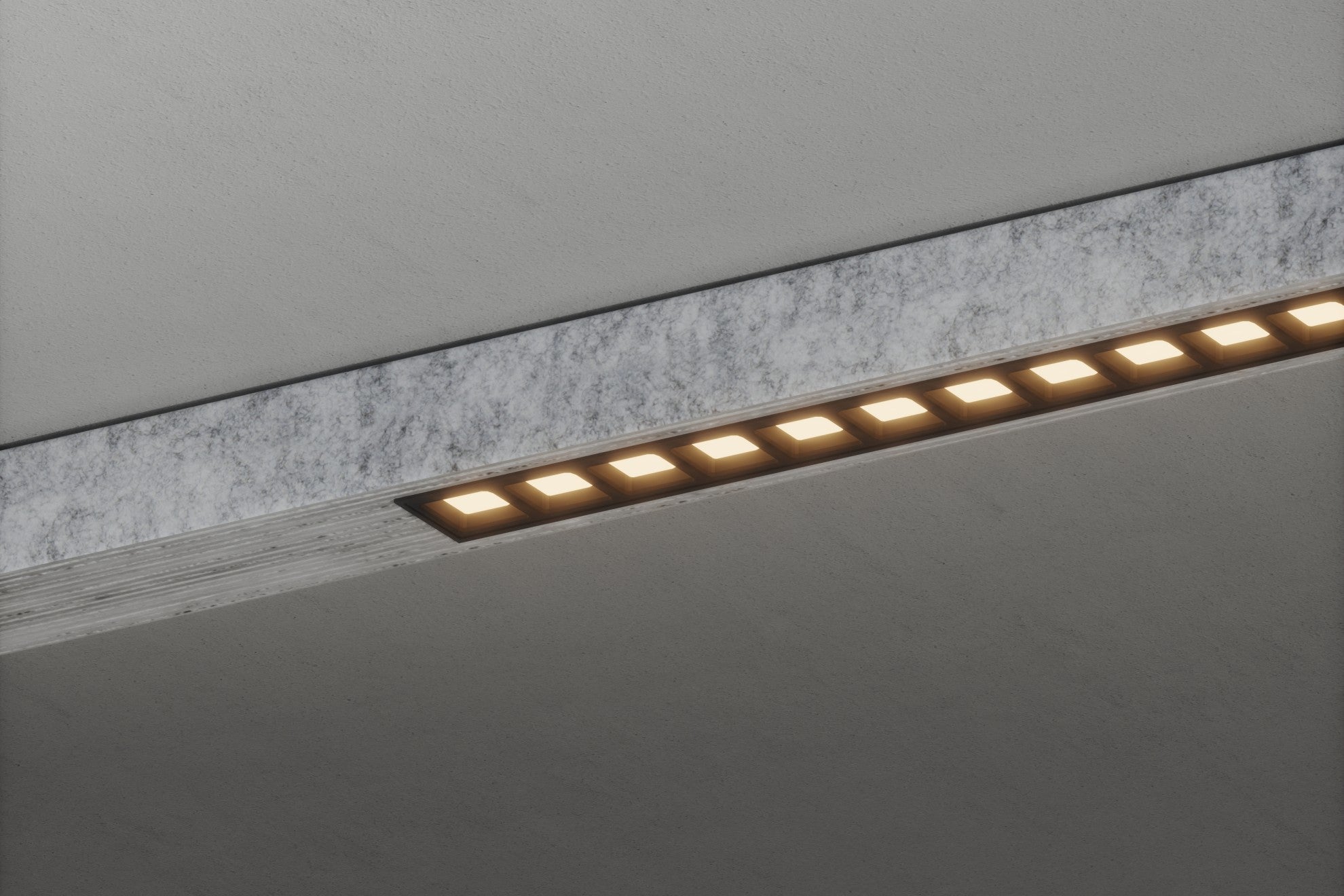

The integrated luminaire creates a soft, even light that subtly highlights the MUTE+® board baffles glowline while effortlessly illuminating the space below.

Linear and delicate system luminaire with air cooling system, equipped with LED technology.

  • Luminaire

    The integrated LED system luminaire transforms the MUTE+® board baffle into a quiet luminescent poem, laying soft, dimmable illumination like morning dew over the workspace. In its warm glow, sound and clarity merge into a harmonious silence, where ideas bloom in the glow of their own tranquility.

  • Baffle

    The MUTE+® board S40‑B baffles envelop the room in velvety silence, transforming everyday murmurs into a gentle whisper.
    In their clear, modular shape, function merges with aesthetics, turning the workspace into an oasis of focused whispering.

System luminaire

Dimensions

  • 844 x 25 x 25 mm
  • 1124 x 25 x 25 mm
  • 1404 x 25 x 25 mm

Colours

  • Black or White

Technical Information

  • Voltage: 230 - 240 V/ 50 -60 HZ
  • Protection class: 2
  • Degree of protection: IP20
  • LED driver: switchable (optional: DALI dimmable)
  • Cover: microlenses/reflector system
  • Light colour: 4,000 K (optional: 3,000 K)
  • Lumen: 1680 - 3350 Lumens
  • Light colour: CRI >80
  • System power: 17.5 - 29 Watts

Fastening

  • Magnetic attachment in the baffle

Baffle

Material

  • Material: Highly compressed, pure polyester
  • Property: Dimensionally stable, lightweight
  • Length: 300 to 3,000 mm
  • Height: 100 to 1,000 mm
  • Weight: approx. 4,000 g/m²

Building Material Class

  • Building material class DIN 4102: B1

Shape

  • 90° corners
  • Custom shapes available

Colours

  • White – gloss level: 4–5 GU
  • Grey marbled – gloss level: 3–4 GU
  • Dark grey marbled – gloss level: 2–3 GU
  • Night grey marbled – gloss level: 1–2 GU
  • Black – gloss level: 1–2 GU
  • Beige – gloss level: 2–3 GU
  • Nut brown – gloss level: 2–3 GU
  • Dahlia yellow – gloss level: 3–4 GU
  • Fir green – gloss level: 2–3 GU
  • Sapphire blue – gloss level: 2–3 GU

Additional Equipment

  • Using digital printing
  • With V-cuts (engraving)

Acoustics

  • Sound absorption class: D to A
  • αw: 0.55 (H) to 0.90 (H)
  • Sound absorption coefficient according to DIN EN ISO 354; rating according to ISO 11654/ ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable
  • 100% european-made panel material

Health

  • Mineral fiber free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100

Notes

  • Visual Appearance

    The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.

    Take the opportunity to order a sample and see for yourself how it meets your expectations.

  • Can be combined with MUTE+® board ...

    Baffles ->
