MUTE+® skin - Wall Absorbers

The Elegant with removable fabric cover

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to OEKO-TEX® STANDARD 100

  • Quality

    Absorber core: Highly compressed, single-material polyester, 3-layer structure

    With fabric cover (visible surface and sides) made of polyester, interchangeable/washable

    Dimensionally stable, despite low weight

    Pinnable

    Height: 300 to 3,000 mm

    Width: 300 to 1,500 mm

    Height: 300 to 1,500 mm

    Width: 300 to 3,000 mm

    Diameter: 300 to 1,500 mm

    Thickness: 40 mm

    Weight: approx. 4,500 g/m²

  • Acoustics

    Absorption class: B and A

    αw: 0.85 - 0.90 Sound absorption coefficient according to DIN EN ISO 354
    Rating according to ISO 11654/ ASTM C423

Variants

  • MUTE__skinR40_tex571_eck_detail.jpg

    MUTE+® skin S/R40-C

    With 90° edge and rounded corners

  • MUTE+® skin S/R40-C

    With 90° edge and 90° corner

  • MUTE+® skin S/R40-C elegance

    With a 45° bevel and rounded corners
1 10
View full details

Material

  • Absorber core: High-density and pure polyester
  • Structure: 3 layers
  • Properties: Dimensionally stable, lightweight
  • Fabric: Polyester - visible face and sides of the absorber core covered; fabric interchangeable and washable
  • Pinnable

Building material class

  • Building material class DIN 4102: B1

Shape

  • Round or with rounded corners, radius 70 mm; alternatively: 90° corners
  • Variable shapes possible

Colors

Additional equipment

  • Pinnable
  • Cut-outs for built-in components

Acoustics

  • Absorption class: B and A
  • αw: 0.85 - 0.9
  • Sound absorption coefficient according to DIN EN ISO 354; rating according to ISO 11654 / ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable
  • 100% European-made panel material

Health

  • Mineral fibre-free
  • Allergy-friendly
  • Tested for harmful substances in accordance with OEKO-TEX® STANDARD 100
  • Low VOC emissions: Indoor Air Comfort GOLD

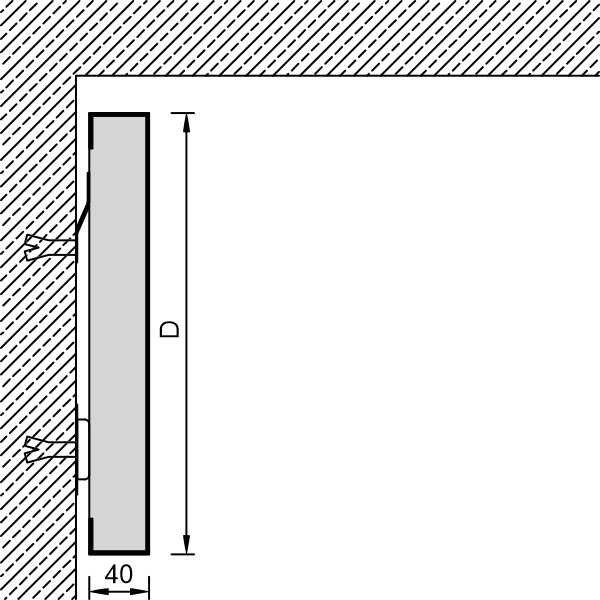

  • Installation

    Simply hook in with wedge strips and magnets.

    CAD details

  • Acoustic calculator

    Room noise is reduced and speech intelligibility is optimised.
    Become a sound artist and experience the data of silence in our acoustic calculator.

    Acoustic calculator

  • Sound worlds

    Where creativity meets performance and success stories are written.

    References

Downloads

Notes

  • Farbdarstellung und Chargen

    Die visuelle Erscheinung der Farben und Strukturen kann je nach Monitor, Druck, Lichtverhältnissen und anderen Umgebungsfaktoren variieren.

    Geringfügige Farb- und Strukturabweichungen zwischen einzelnen Chargen sind fertigungsbedingt und stellen keinen Mangel dar. Nutzen Sie doch die Möglichkeit, ein Muster zu bestellen und selbst zu erleben, wie es Ihren Vorstellungen entspricht.

    Abfärbungen durch Textilien
    Färben Bekleidungstextilien auf unsere Bezugsstoffe ab, liegt die Ursache im Bekleidungsstoff. Nach dem Verursacherprinzip sind solche Verfärbungen von jeglicher Herstellergarantie ausgenommen.

  • Can be combined with MUTE+® skin ...

    Ceiling absorbers

  • 3D configurator

    pCon.planner: your key to interior design

    Use this versatile tool with access to extensive OFML data, available in both full and free versions. Discover Lindner products such as the modular CAS ROOMS system and innovative MUTE+® sound absorbers. Effortlessly design, visualise, and export room concepts and implement creative solutions. Unleash your creativity!
    pCon.planner

Product samples

Feel and experience the quality of our acoustic masterpieces
