MUTE+® skin - ceiling absorber

The elegant with removable fabric cover

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to OEKO-TEX® STANDARD 100

  • Quality

    Absorber core: Highly compressed, single-material polyester, 3-layer structure

    With fabric cover (visible surface and sides) made of polyester, interchangeable/washable

    Dimensionally stable, despite low weight

    Length: 300 to 3,000 mm

    Width: 300 to 1,500 mm

    Diameter: 300 to 1,500 mm

    Thickness: 40 mm

    Weight: approx. 4,500 g/m²

  • Acoustics

    Sound absorption class: A

    αw: 1.00 sound absorption coefficient according to DIN EN ISO 354
    Rating according to ISO 11654/ ASTM C423

Variants

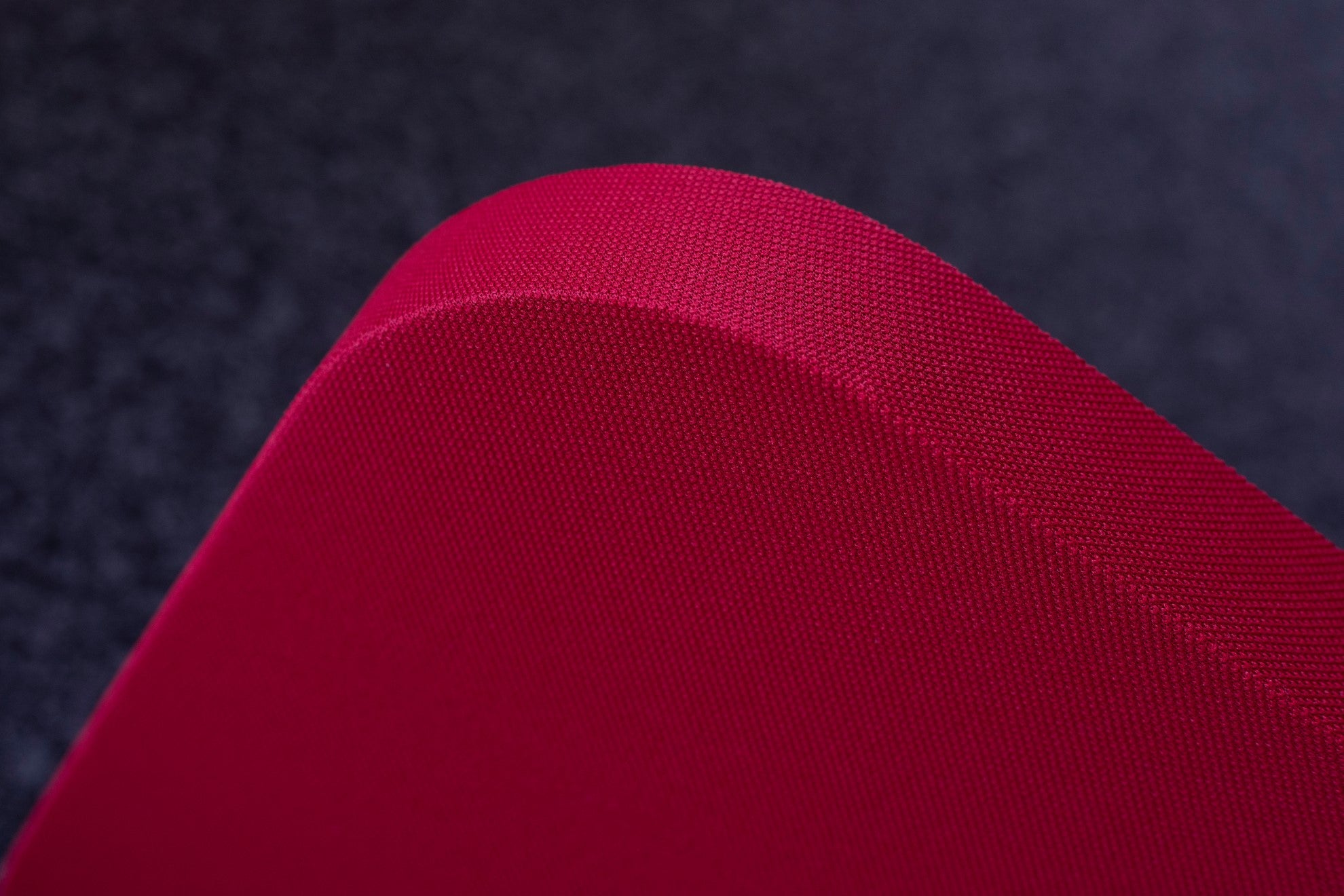

  • MUTE__skinR40_tex571_eck_detail.jpg

    MUTE+® skin S/R40-C

    With 90° edge and rounded corners

  • MUTE+® skin S/R40-C

    With 90° edge and rounded corners

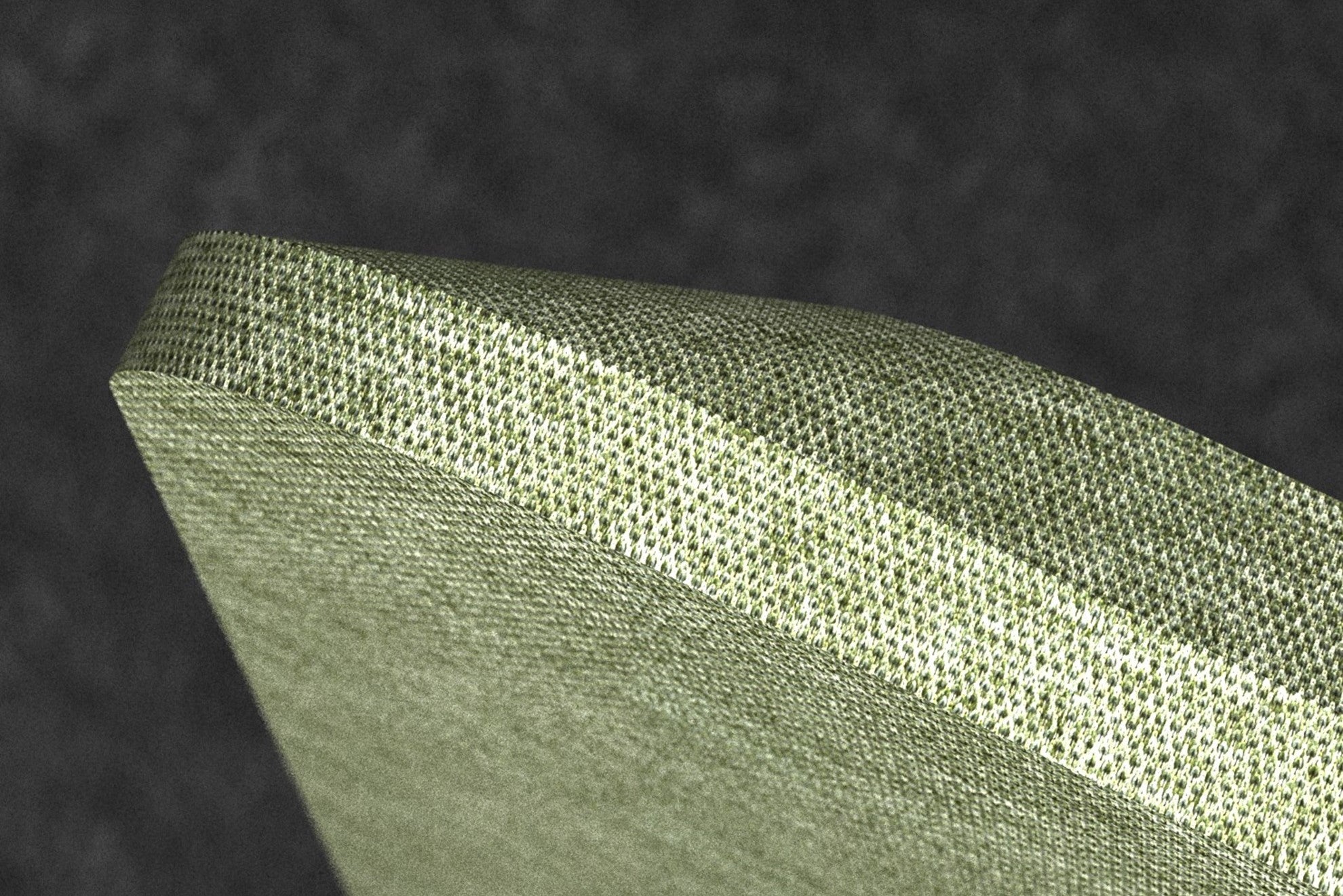

  • MUTE+® skin S/R40-C elegance

    With 45° bevel and rounded corners
1 10
View full details

Material

  • Absorber core: High-density, single-material polyester
  • Construction: 3 layers
  • Properties: Dimensionally stable, lightweight
  • Fabric: Polyester – visible face and sides of the absorber core covered; fabric is interchangeable and washable

Building material class

  • Building material class DIN 4102: B1

Shapes

  • Round or with rounded corners, radius 70 mm; alternatively: 90° corners
  • Variable shapes possible

Colours

Additional equipment

  • Cut-outs for built-in components

Acoustics

  • Sound absorption class: A
  • αw: 1,00
  • Sound absorption coefficient according to DIN EN ISO 354; rating according to ISO 11654 / ASTM C423

Sustainability

  • 95% recyclable material
  • Modular system for flexile reuse
  • 100% European-made panel material

Health

  • Mineral fibre-free
  • Allergy-friendly
  • Tested for harmful substances in accordance with OEKO-TEX® STANDARD 100
  • Low VOC emissions: Indoor Air Comfort GOLD

  • Installation

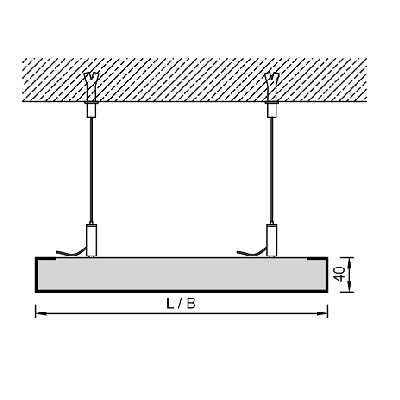

    Saves time thanks to simple installation with a slim, continuously adjustable cable suspension system.

    CAD details

  • Acoustic calculator

    Room noise is reduced and speech intelligibility is optimised.
    Become a sound artist and experience the data of silence in our acoustic calculator.

    Acoustic calculator

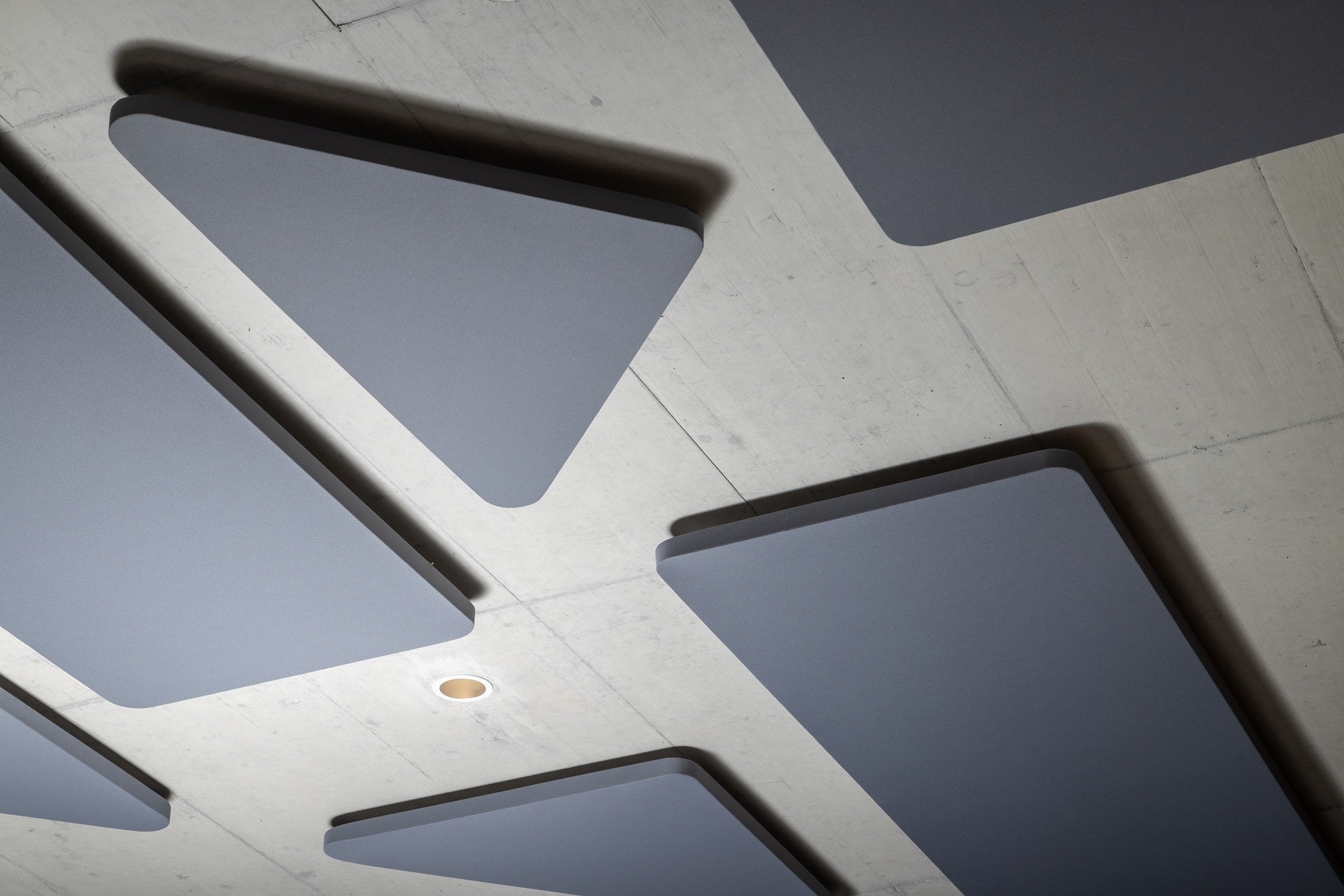

  • kantonsspital-baden-II-rainer-taepper-084_1980x1320.jpg

    Sound worlds

    Where creativity meets performance and success stories are written.

    References

Downloads

Notes

  • Visual appearance

    The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.
    Take the opportunity to order a sample and see for yourself how it meets your expectations.
    Different production batches inevitably result in slight colour variations in the fabrics.
    Such batch variation is not grounds for complaint.
    Any discolouration of our fabrics caused by clothing textiles is a fault in the clothing fabric. As the polluter-pays principle applies here, discolouration caused by textiles is excluded from any manufacturer's warranty.
