MUTE+® cover - wall absorber

The striking with concealed frame

  • Building Material Class

    Glass material:
    A1 - DIN EN 13501
    class A - ASTM E 84

    Polyester fabric:
    B1 - DIN 4102
    class A - ASTM E 84

    Wool fabric:
    B2 - DIN 4102

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to Oeko-Tex® Standard 100

  • Quality

    With concealed aluminum frame

    Dimensionally stable, with 90° corners

    Pinnable

    Dimension: up to 1,250 x 3,500 mm

    Thickness: 45 / 60 mm

    Thickness: 90 / 120 mm

  • Acoustics

    Absorption class: A

    αw: 0.95 to 1.00 sound absorption coefficient according to DIN EN ISO 354
    Evaluation according to ISO 11654/ ASTM C423

Executions

  • MUTE__cover45_tex442_eck_detail.jpg

    MUTE+® cover S45-W / S60-W

    Thickness: 45 / 60 mm (example photo with 45 mm)

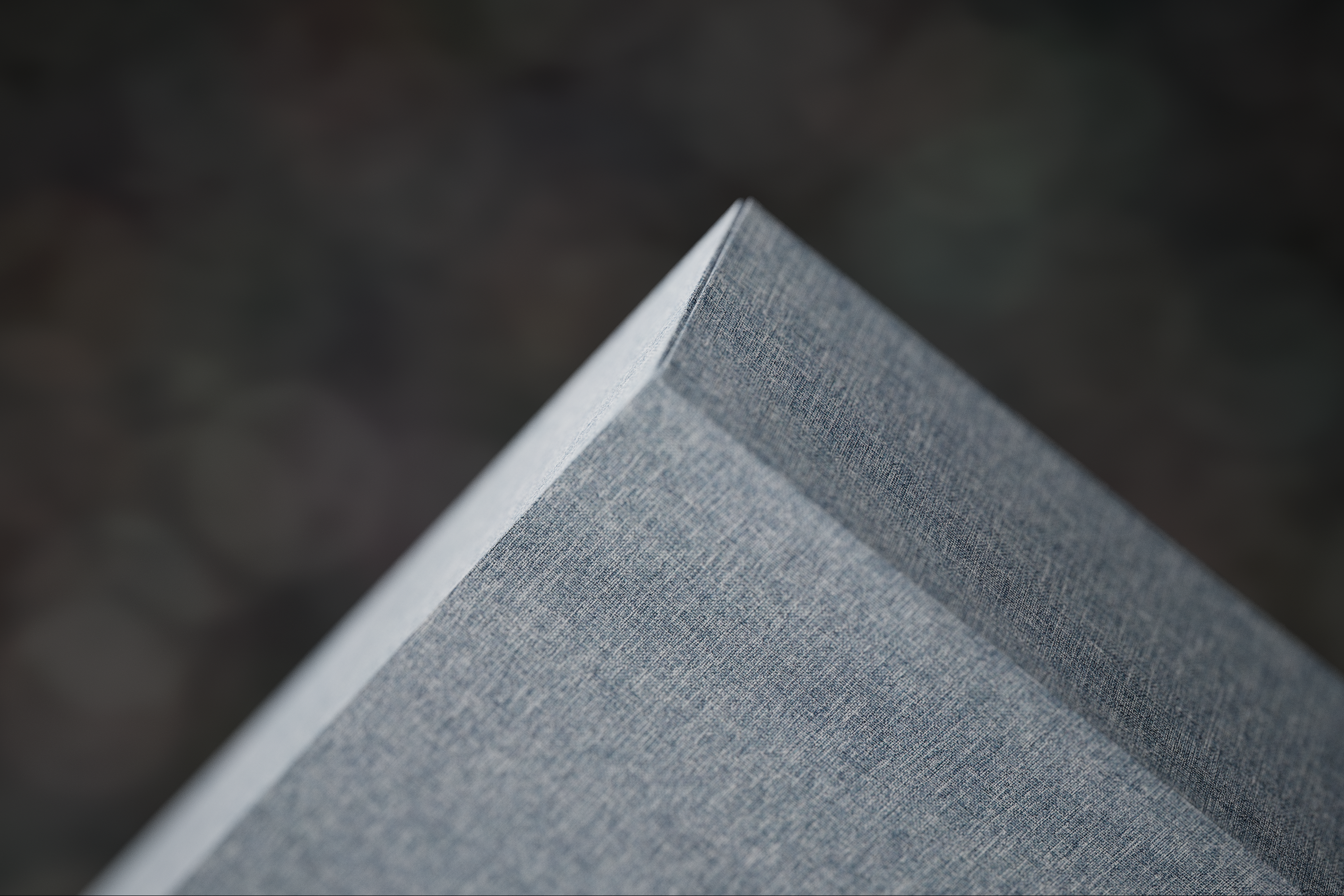

  • MUTE+® cover S90-W-BA / S120-W-BA (broadband absorber)

    Thickness: 90 / 120 mm (example photo with 90 mm)

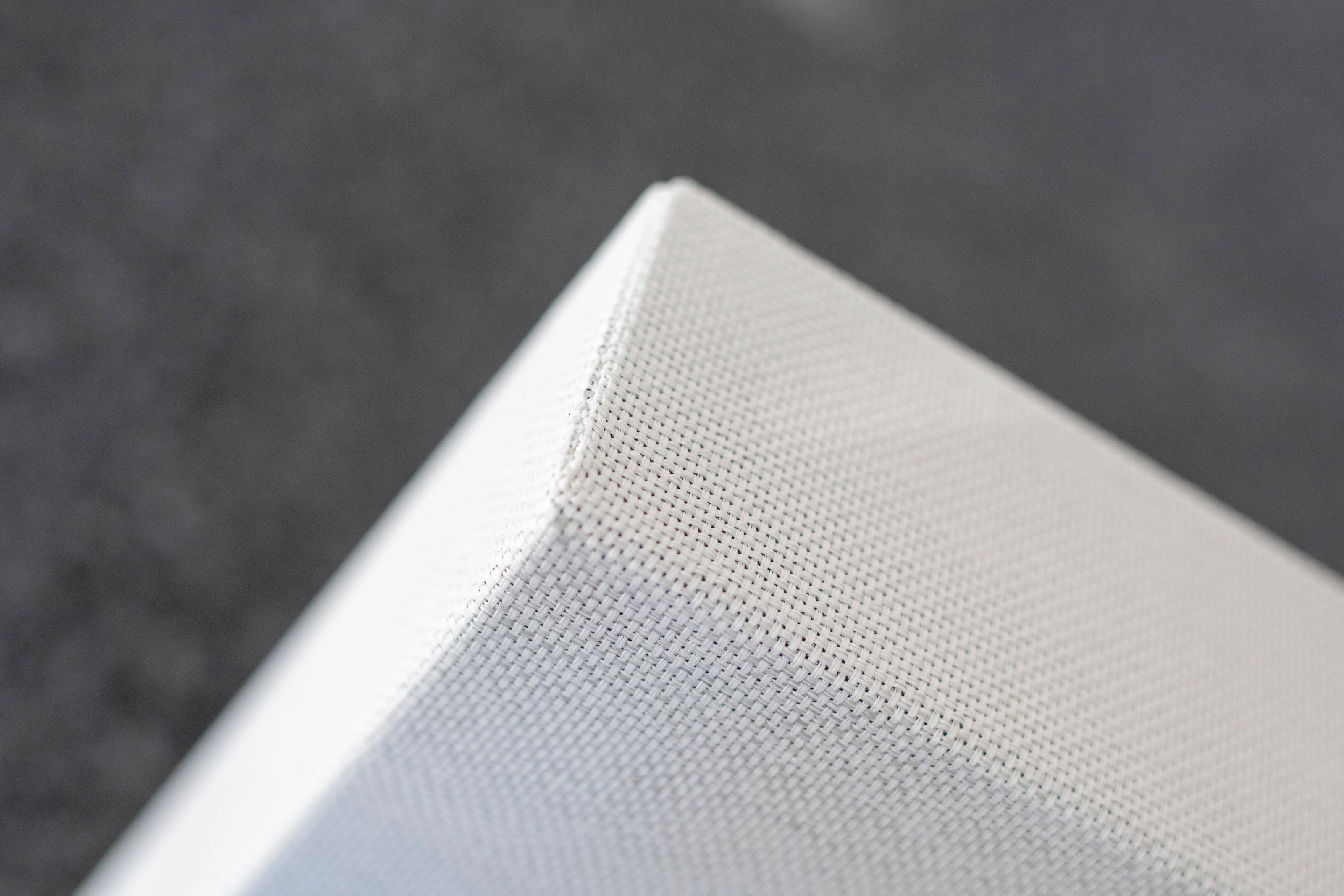

  • MUTE+® cover S45-W / S60-W - A1 non-combustible

    Thickness: 45 / 60 mm (example photo with 60 mm)
1 23
View full details

Material

  • Frame: material: extruded aluminum profile, mitered and invisibly joined
  • Acoustic insert
  • Fabric: polyester/wool - stretched over the outside of the aluminum frame and vacuumable
  • Glass fabric (45 / 60 mm): stretched over the outside of the aluminum frame, can be vacuumed or cleaned with clear glass cleaner

Building Material Class

  • Building material class DIN 4102: B1 (polyester) / B2 (wool)
  • Building material class DIN EN 13501-1: A1 (glass fabric, 45 / 60 mm)
  • Building material class ASTM E84: class A (polyester, 45 / 60 mm)
  • Building material class ASTM E84: class A (glass fabric, 45 / 60 mm)

Form

  • Rectangular with 90° corners
  • S45 - with 45 mm absorber thickness, dimension: up to 1,250 x 3,500 mm
  • S60 - with 60 mm absorber thickness, dimension: up to 1,250 x 3,500 mm
  • S90 - with 90 mm absorber thickness, dimension: up to 1,000 x 3,000 mm
  • S120 - with 120 mm absorber thickness, dimension: up to 1,000 x 3,000 mm

Colors

Additional equipment

S45 / S60 / S90 / S120:

  • Pinnable
  • Magnetically pinnable
  • Using digital printing

S45 / S60:

  • With cut-outs
  • Ball-throw safe

Acoustics

  • Absorption class: A
  • αw: 0.95 to 1.00
  • Sound absorption coefficient according to DIN EN ISO 354; rating according to ISO 11654/ ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable

Health

  • Mineral fiber free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100
  • Low VOC emissions: Indoor Air Comfort GOLD

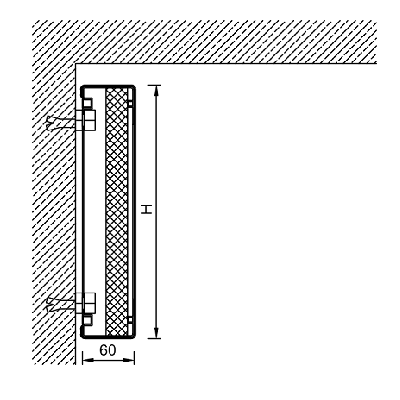

  • Assembly

    Time-saving installation with adjustable rotating clip.

    CAD-Details

  • Acoustic calculator

    Room noise is reduced and speech intelligibility is optimised.
    Become a sound artist and experience the data of silence in our acoustic calculator.

    Acoustic calculator

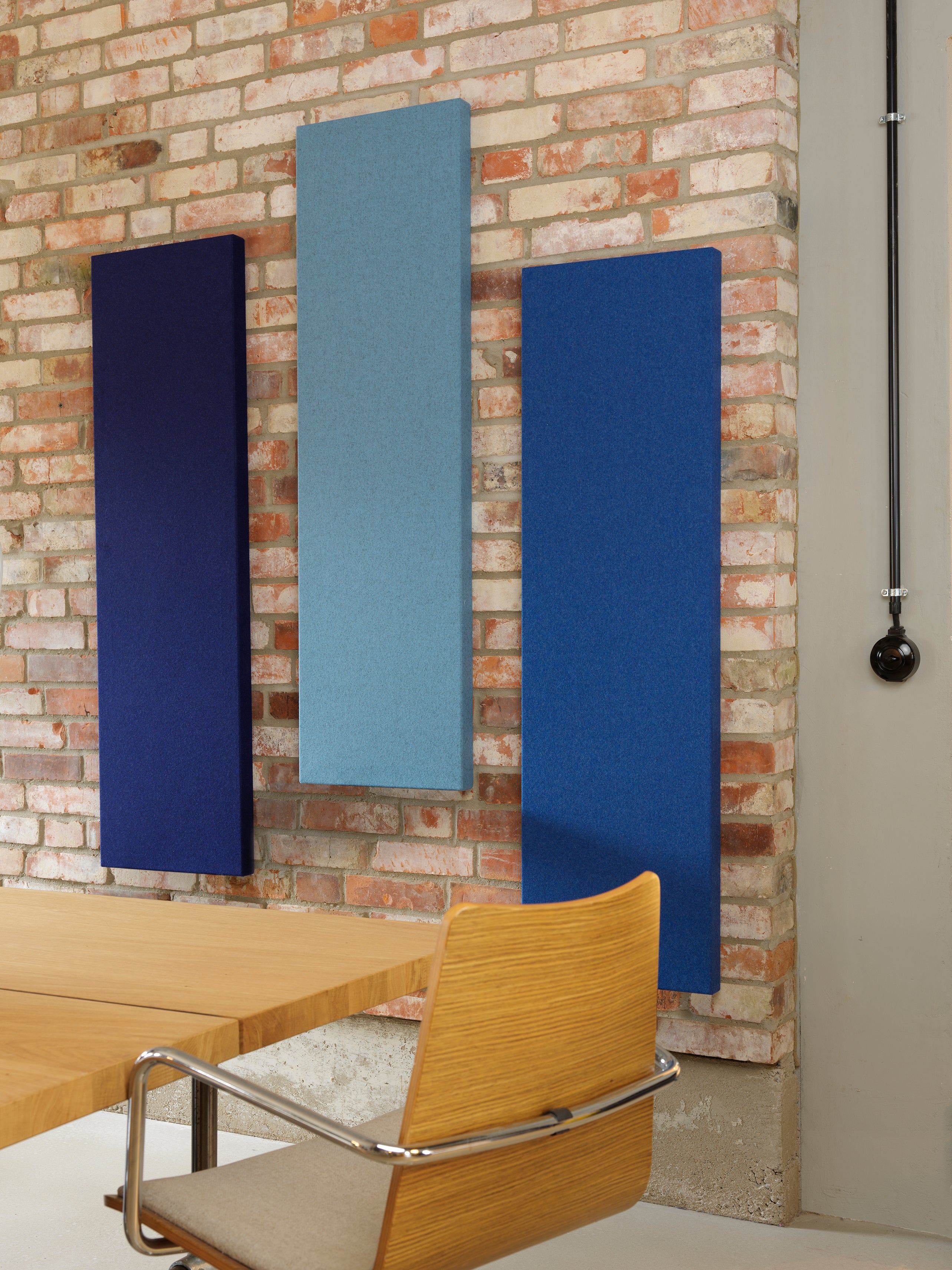

  • Delius_Akustik_0111.jpg

    Sound worlds

    Where creativity meets performance and success stories are written.

    References

Downloads

Notes

  • Farbdarstellung und Chargen

    Die visuelle Erscheinung der Farben und Strukturen kann je nach Monitor, Druck, Lichtverhältnissen und anderen Umgebungsfaktoren variieren.

    Geringfügige Farb- und Strukturabweichungen zwischen einzelnen Chargen sind fertigungsbedingt und stellen keinen Mangel dar. Nutzen Sie doch die Möglichkeit, ein Muster zu bestellen und selbst zu erleben, wie es Ihren Vorstellungen entspricht.

    Abfärbungen durch Textilien
    Färben Bekleidungstextilien auf unsere Bezugsstoffe ab, liegt die Ursache im Bekleidungsstoff. Nach dem Verursacherprinzip sind solche Verfärbungen von jeglicher Herstellergarantie ausgenommen.

  • Can be combined with MUTE+® cover...
