Worlds of Light

MUTE+® Light Worlds merge brilliant acoustics with atmospheric light.
Where sound falls silent, a warm atmosphere unfolds.

  • Lighting

    Integrated lighting solutions ensure atmospheric, glare-free light in every room. Whether direct or indirect illumination – our lighting worlds create the perfect balance of functionality and atmosphere.

  • Acoustics

    Atmospheric lighting merges with highly effective acoustics to form a cohesive whole. Disturbing noises are reliably absorbed, creating the peace and quiet necessary for concentrated work and relaxed encounters. Brilliant acoustics in a luminous guise.

  • Design

    Clean forms and elegant contours meet high-quality materials and soft light. Each absorber, with its integrated luminaires, becomes a style-defining element, giving rooms an unmistakable character. Timeless, creative, and harmonious – acoustically and visually refined.

  • Atmosphere

    Where sound is absorbed, a warm sense of coziness is simultaneously created. The combination of soft light and effective acoustics creates unique spaces with a feel-good character. For focus in the office and coziness in meeting zones.

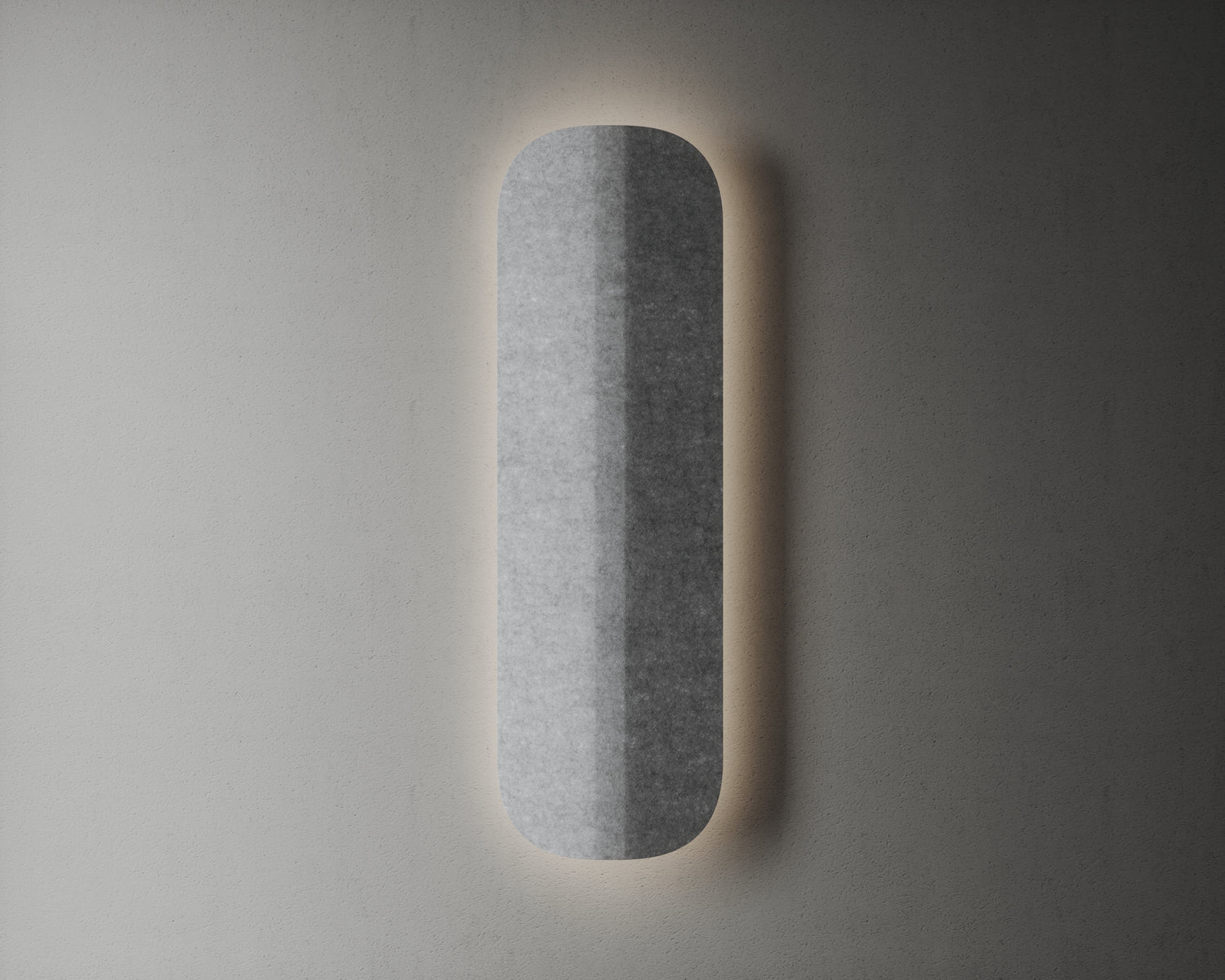

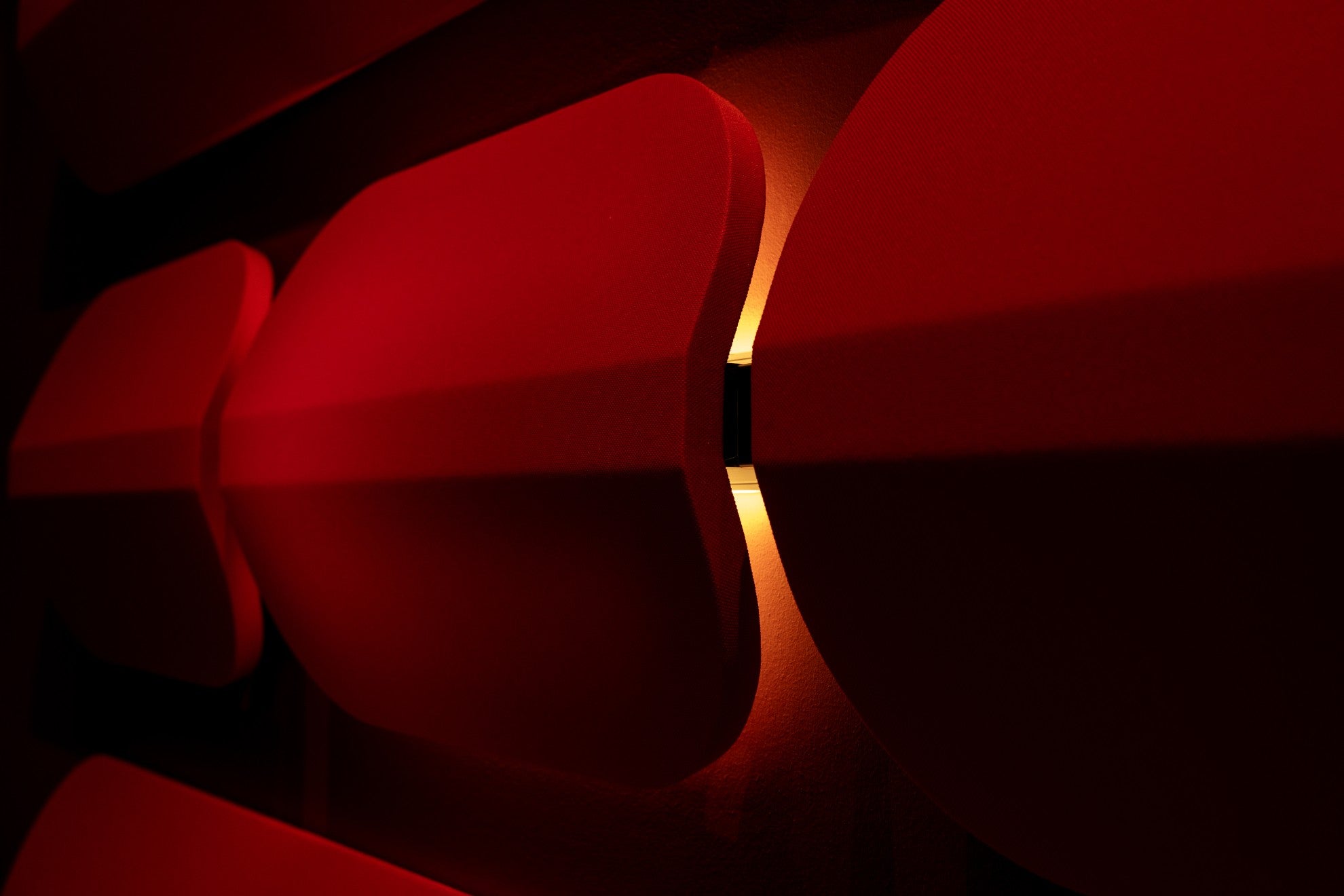

MUTE+ wings® aura

Designer absorber with backlighting for MUTE+ wings®

MUTE+ wings® aura - a glimmer of light that makes silence shine

Type: aura mini, aura midi, aura maxi
Light channel length: 500 mm, 1,100 mm, 1,800 mm
Light channel dimensions: 18x12 mm
Mounting: magnetic
Light color: 3,000 Kelvin
Color rendering: CRI>80
Luminous flux (LED system): 1,000 lm, 2,200 lm, 3,600 lm
Power: 12 Watt, 26.5 Watt, 86.5 Watt
Control gear: switchable, optionally DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: diffuse PMMA cover

-> MUTE+ wings®

MUTE+® Lighting Worlds - Datasheet

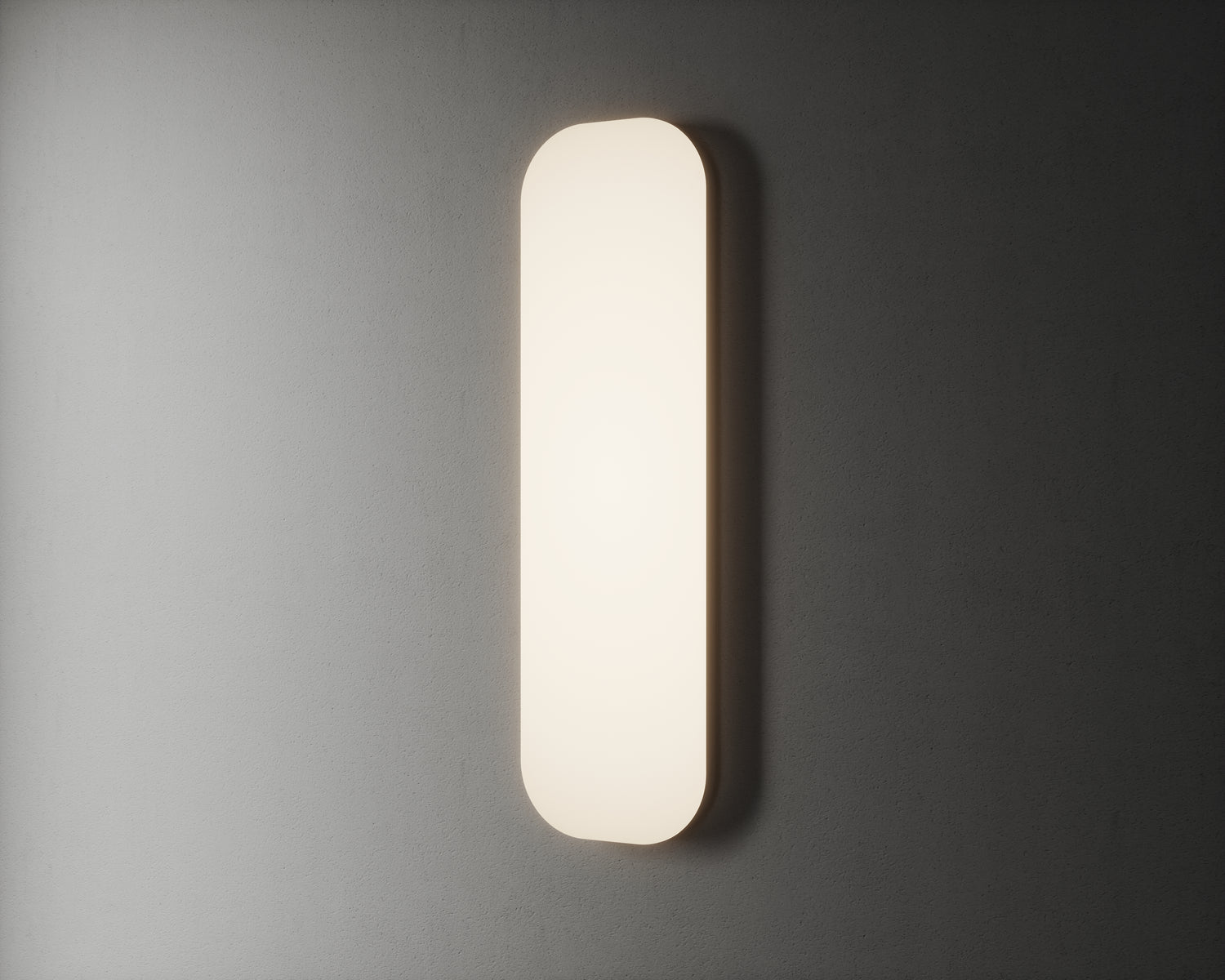

MUTE+ wings® glow

Designer light in combination with MUTE+ wings®

The room comes to life in the glow of the MUTE+ wings® glow.

Type: glow mini, glow midi, glow maxi

Height: 604 mm, 1,254 mm, 1,904 mm
Width: 387 mm
Thickness: 42 mm
Mounting: magnetic
Light color: 3,000 Kelvin
Color rendering: CRI>80
Luminous flux (LED system): 2,500 lm, 5,000 lm, 7,500 lm
Power: 25 Watt, 50 Watt, 75 Watt
Operating device: switchable, optional DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: diffuse PMMA cover

-> MUTE+ wings®

MUTE+® Lighting Worlds - Datasheet

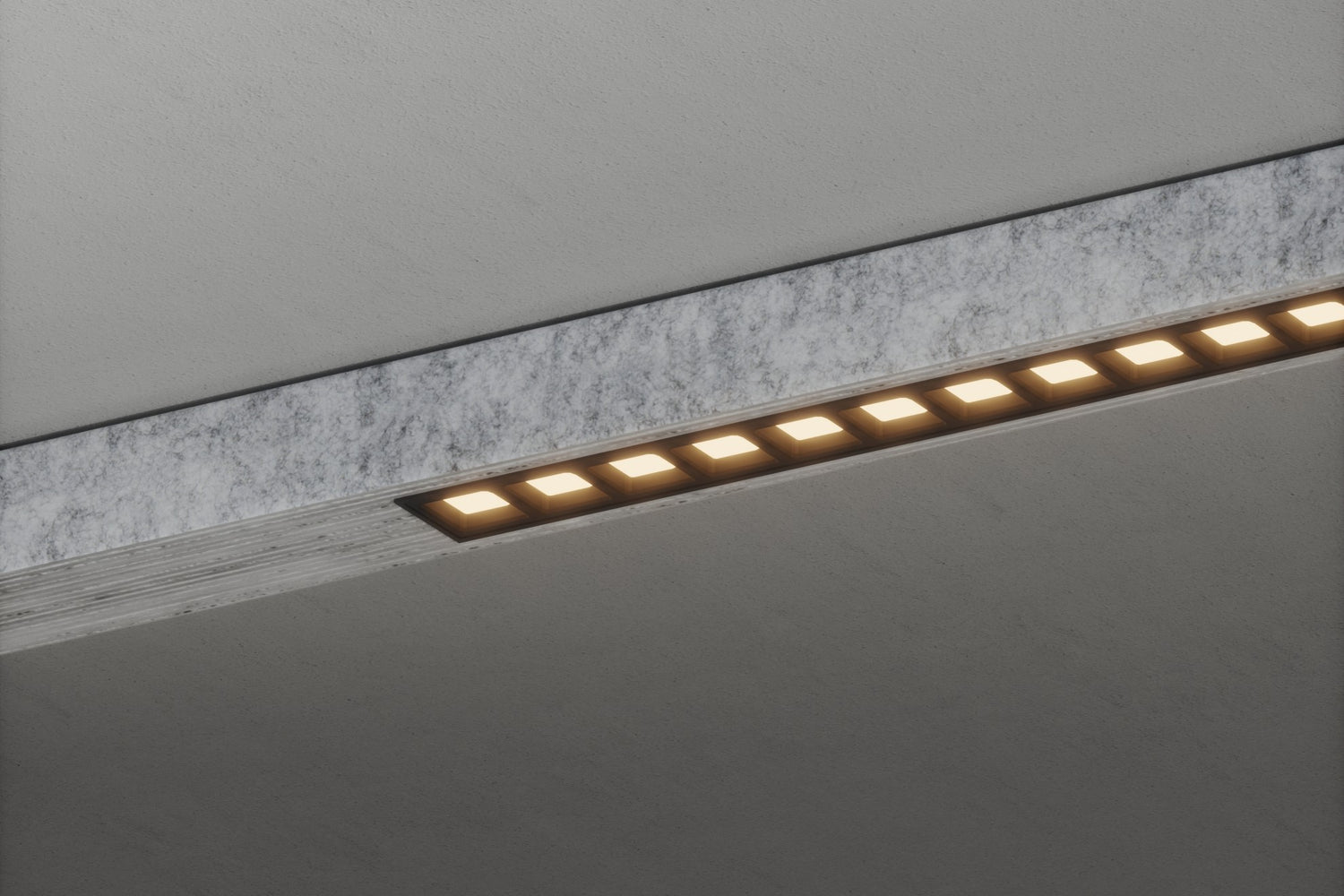

MUTE+® board glowline

Recessed luminaire for MUTE+ ® board S40-B baffles

Discreet system luminaire that softly envelops sound and bathes rooms in a gentle glow.

Type: Qzmute-v844, Qzmute-v1124, Qzmute-v1404

Length: 844 mm, 1,124 mm, 1,404 mm
Dimensions: 25x25 mm
Housing color: black, optional white
Mounting: magnetic
Light color: 4,000 Kelvin, optional 3,000 Kelvin
Luminous flux (LED system): 1,680/2,010 lm, 2,250/2,680 lm, 2,810/3,350 lm
Power: 17.5 Watt, 23 Watt, 29 Watt
Control gear: switchable with external control gear, optional DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: microlenses / reflector system

-> MUTE+® board baffle glowline

MUTE+® Lighting Worlds - Datasheet

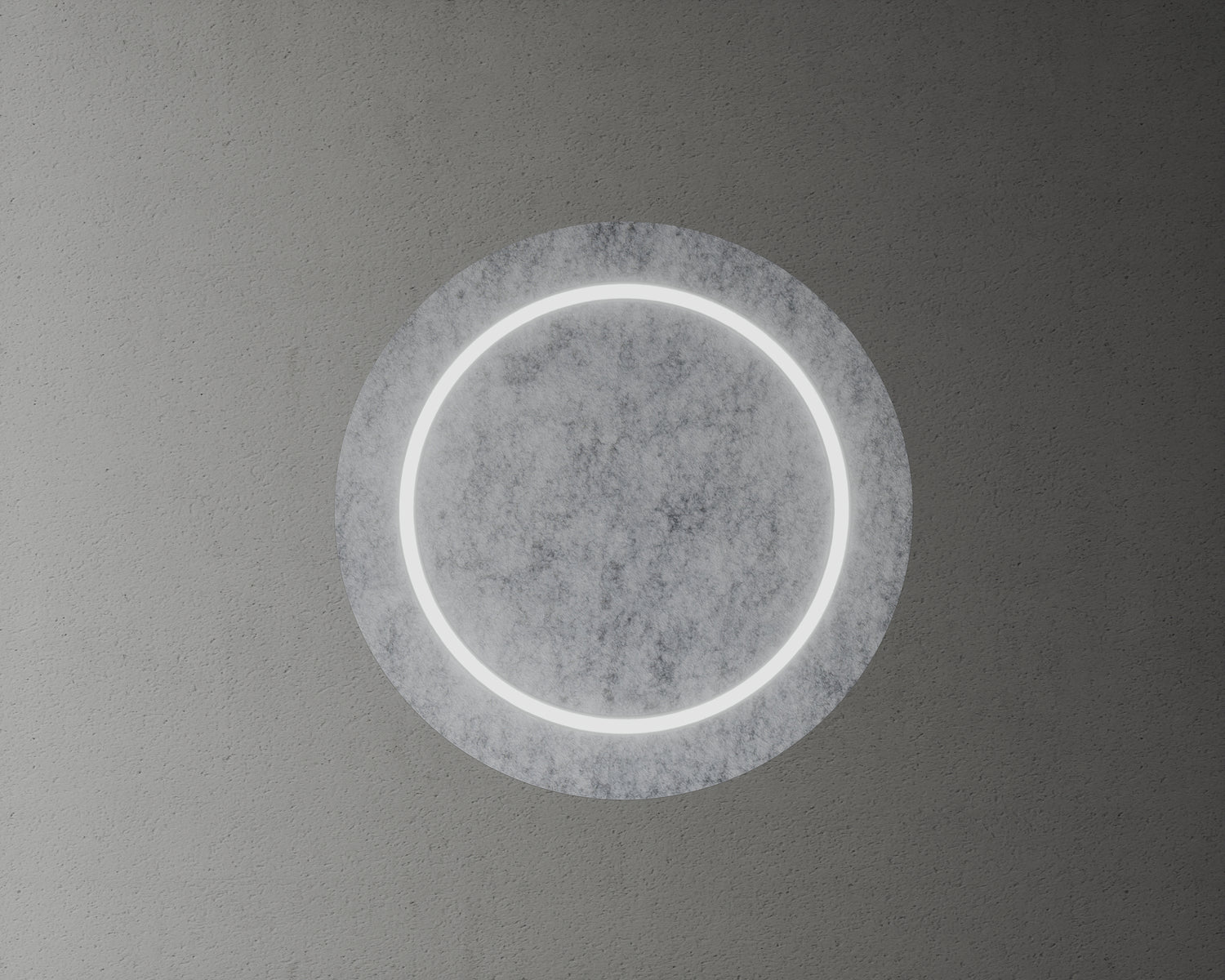

Type loop

Pendant luminaire for the MUTE+® board R40 and MUTE+® frame R40 sound absorbers

The ring light enchants the room with radiant elegance and gentle tranquility.

Type: 770 OS SD HE, 1178 OS SD HE, 1500 OS SD HE

Diameter: 770 mm, 1,178 mm, 1,500 mm
Width x Height: 50x85 mm
Housing color: RAL9016, optional according to RAL color chart
Mounting: Steel cable suspension from the raw ceiling
Light color: 4,000 Kelvin, optional 3,000 Kelvin
Color rendering: CRI>80, optional >90
Luminous flux: 3,966 lm, 5,950 lm, 7,933 lm
Power: 34.4 Watt, 51.6 Watt, 68.8 Watt
Control gear: switchable, optional DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: Opal diffuser, optional microprismatic diffuser for UGR<19

MUTE+® Lighting Worlds - Data Sheet

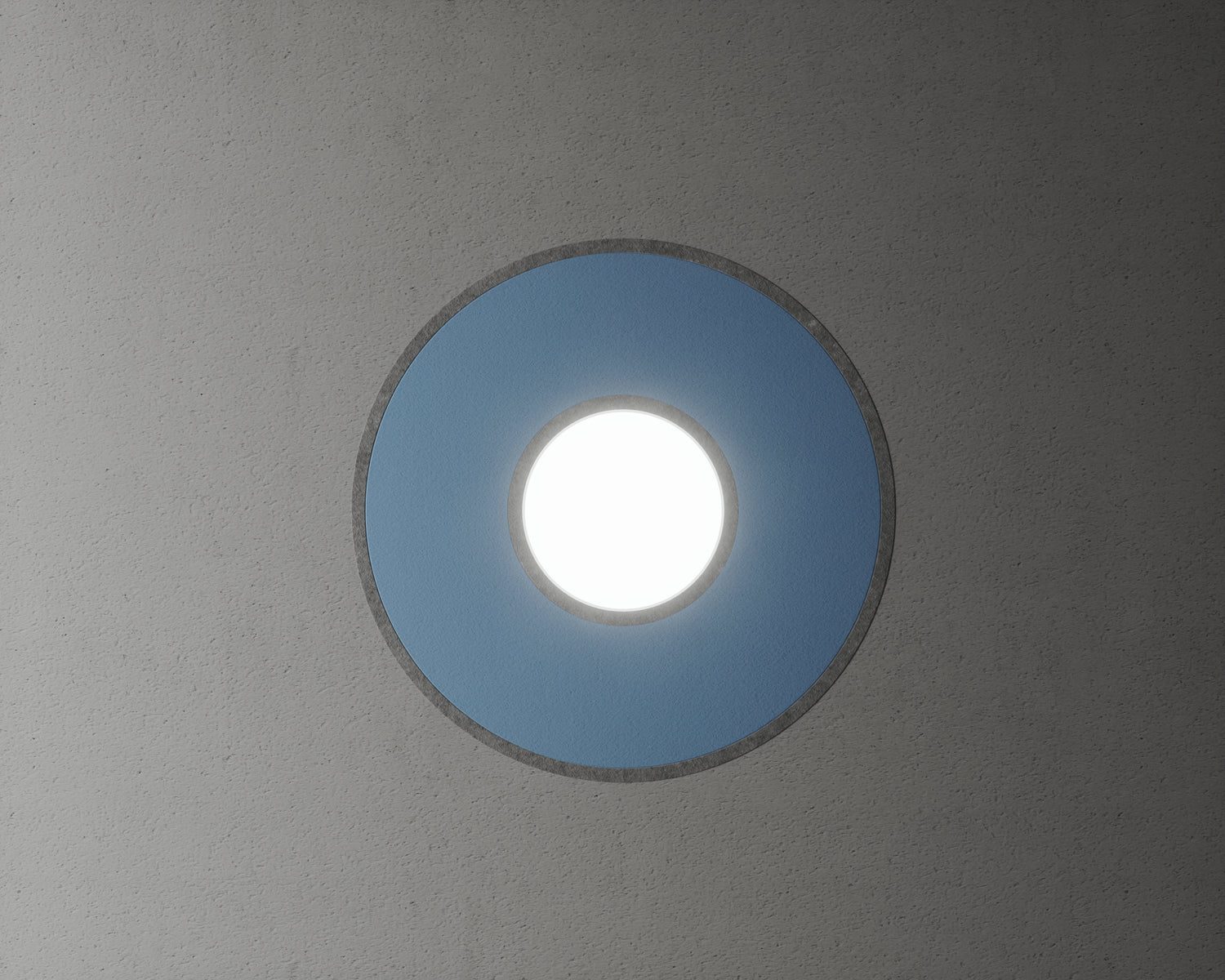

Type flat c-p

Pendant luminaire for MUTE+® board R40 and MUTE+® frame R40 acoustic absorbers

A gentle circle of silence framed by light.

Type: 300 1.5 OS, 470 4.0 OS, 600 5.5 OS

Diameter: 300 mm, 470 mm, 600 mm
Height: 85 (63+22) mm
Housing color: RAL9016, optional according to RAL color chart
Mounting: Steel cable suspension from the raw ceiling
Light color: 4,000 Kelvin, optional 3,000 Kelvin
Color rendering: CRI>80, optional >90
Luminous flux: 1,725 lm, 4,210 lm 5,760 lm
Power: 13 Watt, 30 Watt, 41 Watt
Control gear: switchable, optional DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: Opal diffuser, optional microprismatic diffuser for UGR<19

MUTE+® Lighting Worlds - Datasheet

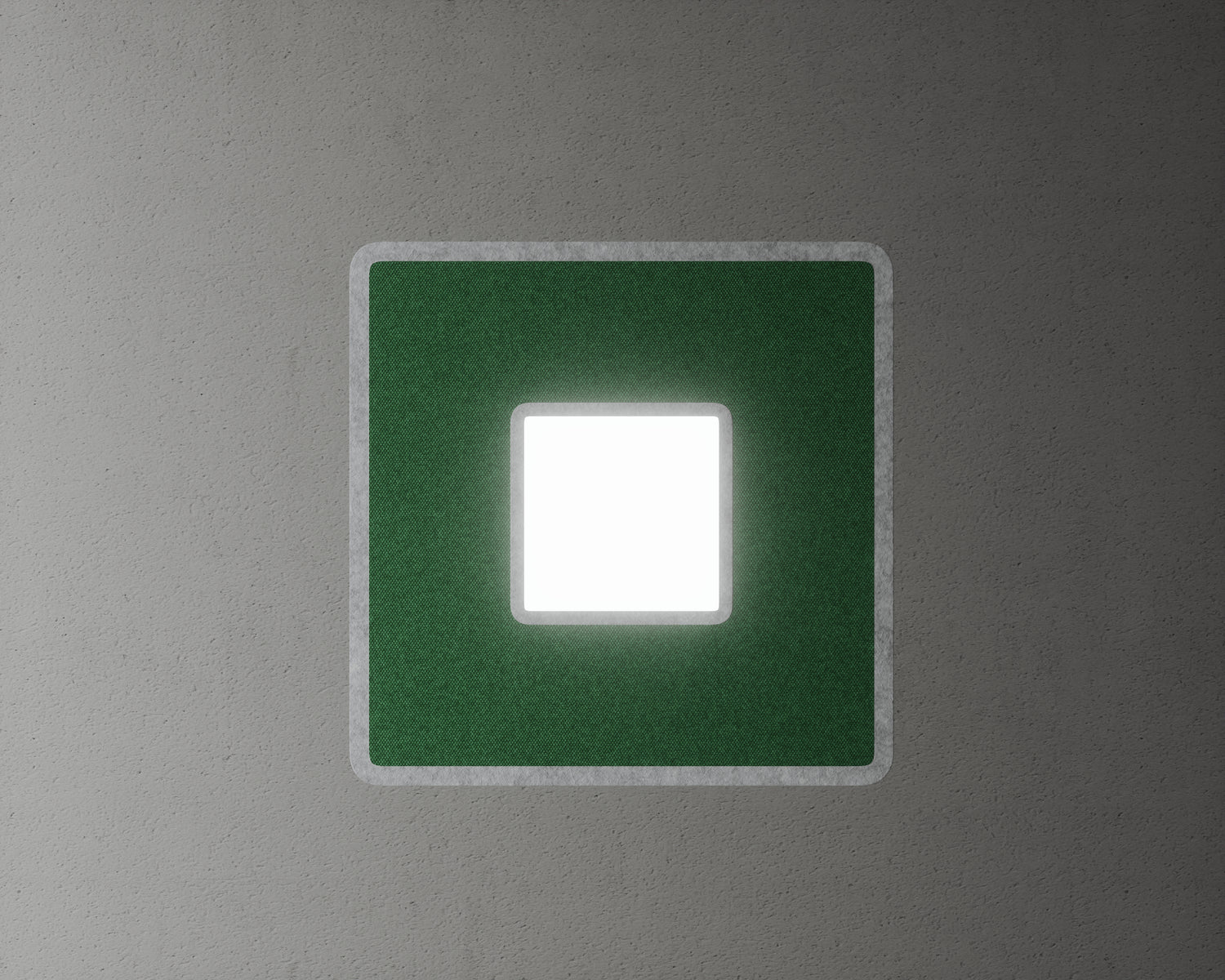

Type flat q-p

Pendant luminaire for MUTE+® board S40 and MUTE+® frame S40 sound absorbers

Clean lines that quietly combine light and tranquility.

Type: 300 2.0 OS, 450 4.5 OS, 600 7.5 OS

Length: 300 mm, 450 mm, 600 mm
Width: 300 mm, 450 mm, 600 mm
Height: 85 (63+22) mm
Housing color: RAL9016, optional according to RAL color chart
Mounting: Steel cable suspension from the raw ceiling
Light color: 4,000 Kelvin, optional 3,000 Kelvin
Color rendering: CRI>80, optional >90
Luminous flux: 2,000 lm, 4,600 lm, 8,080 lm
Power: 16 watts, 32 watts, 59 watts
Operating device: switchable, optional DALI dimmable
Voltage: 220-240 V, 50-60 Hz
Finish: Opal diffuser, optional microprism diffuser for UGR<19

MUTE+® Lighting Worlds - Data Sheet
